Fig. 3

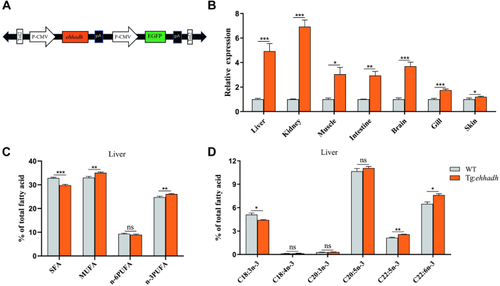

The effect of Ehhadh overexpression on fatty acid composition of zebrafish. A: Schematic depicting of the recombinant plasmid containing the Ehhadh transgene. The Ehhadh gene was driven by the CMV promoter and conjugated to the DNA sequences of Tol2 and GFP fluorescent protein. B: Quantitative expression of Ehhadh in different tissues of WT and Ehhadh transgenic zebrafish (Tg:Ehhadh). C: Liver ∑SFA, ∑MUFA, ∑n-6PUFA, and ∑n-3PUFA composition of WT and Tg:Ehhadh. D: Liver n-3PUFA (18:3n-3, 18:4n-3, 20:3n-3, 20:5n-3, 22:5n-3, and 22:6n-3) composition of WT and Tg:Ehhadh. ns means no significant difference; ∗ means P < 0.05; ∗∗ means P < 0.01; ∗∗∗ means P < 0.001. Ehhadh, enoyl-CoA hydratase/3-hydroxyacyl CoA dehydrogenase; MUFA, mono-unsaturated fatty acid; PUFA, poly-unsaturated fatty acid; SFA, saturated fatty acid.
