Figure 4

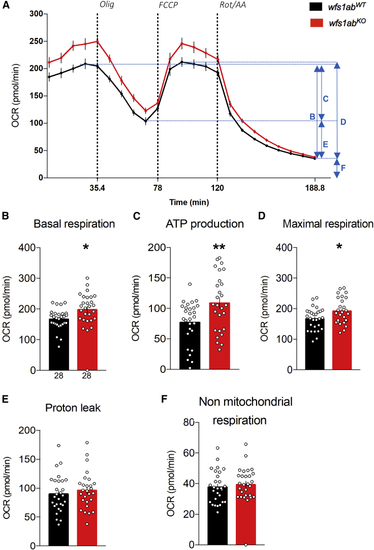

Analysis of mitochondrial respiration in 5 dpf wfs1^KO zebrafish larvae

(A) Oxygen consumption rate (OCR) profiles of wfs1ab^WT and wfs1ab^KO zebrafish larvae at 5 dpf during the assay and calculated, (B) basal respiration rate, (C) ATP production-related OCR, (D) maximal respiration, (E) proton leak, and (F) non-mitochondrial respiration. Data are mean from triplicates and show mean ± SEM from n = 28 animals per genotype. Olig, oligomycin; FCCP, cyanide-p-trifluoromethoxyphenylhydrazone; Rot/AA, rotenone + antimycin A. ∗p < 0.05, ∗∗p < 0.01 versus wfs1ab^WT, unpaired t test.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	wfs1a^{sa11465/sa11465}; wfs1b^{sa16422/sa16422}
Conditions:	chemical treatment by environment: carbonyl cyanide p-trifluoromethoxyphenylhydrazone chemical treatment by environment: oligomycin
Observed In:	aerobic respiration
Stage:	Day 5
