Fig. 3
- ID
- ZDB-FIG-220829-46
- Publication
- Sheng et al., 2022 - Sema4C Is Required for Vascular and Primary Motor Neuronal Patterning in Zebrafish
- Other Figures
- (all 6)
- All Figure Page
- Back to All Figure Page

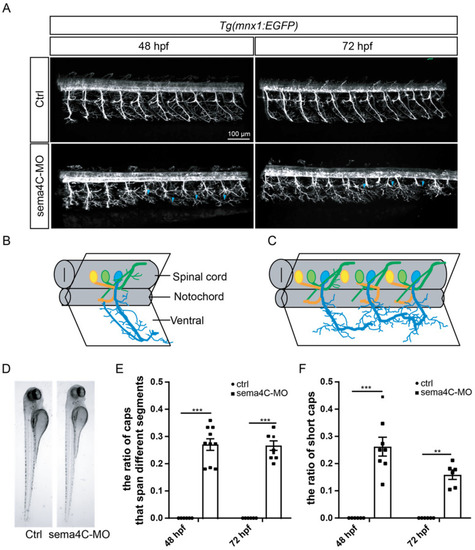

The abnormal development of primary motor neurons in the sema4C deficiency zebrafish. (A). Confocal imaging analysis of primary motor neurons in control and sema4C knockdown Tg(mnx1:EGFP) zebrafish at 48 and 72 hpf, blue arrowheads indicate aberrant Caps; (B). The schematic diagram for three different primary motor neurons in the control fish; (C). The schematic diagram for the abnormal pattern in the sema4C morphants, in which the axonal trajectories of Caps were dramatically misled; (D). Zebrafish embryos of control and sema4C-MO injected at 72 hpf imaged in bright field; (E). The statistical analysis of the ratio of Caps across different segments in the control and sema4C morphants at 48 and 72 hpf. Mann?Whitney test, 48 hpf: *** p = 0.0007; *** 72 hpf: p = 0.0007; (F). The statistical analysis of the ratio of short Caps in the wild types and sema4C morphants at 48 and 72 hpf. Mann?Whitney test, 48 hpf: *** p = 0.0007; 72 hpf: ** p = 0.0022. |
Gene: | |
---|---|
Fish: | |
Knockdown Reagent: | |
Anatomical Terms: | |
Stage Range: | Long-pec to Protruding-mouth |
Fish: | |
---|---|
Knockdown Reagent: | |
Observed In: | |
Stage Range: | Long-pec to Protruding-mouth |
