Fig. 1

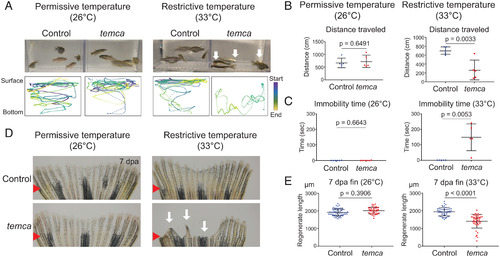

The temca mutants display temperature-sensitive locomotion and fin-regeneration defects. (A) Swimming behavior of control (wild-type siblings) and temca at 26 °C (Left) and 33 °C (Right). (Bottom) Representative 1-min swimming trajectories of individual fish. Color code indicates video frame, and the distance between dots indicates speed. (B and C) Quantification of 3-min swimming behavior of control and temca mutants at 26 °C (Left) and 33 °C (Right). (B) Average distance traveled (n = 5). (C) Duration of immobility at the bottom of swimming tanks (n = 5). (D) Representative whole-mount images of control and temca 7 dpa fins at 26 °C (Left) and 33 °C (Right). White arrows indicate impaired fin regenerates of temca mutants. Red arrows indicate amputation plane. (E) Quantification of fin-regenerate lengths at 7 dpa at 26 °C (n = 62 and 39 for control and temca, respectively) and 33 °C (n = 51 and 43 for control and temca, respectively). Data are presented as mean ± SD. Student’s unpaired two-tailed t test.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT scn8ab^pd291/pd291
Conditions:	amputation: caudal fin, heat exposure heat exposure
Observed In:	caudal fin caudal fin fin regeneration caudal fin principal ray swimming
Stage:	Adult
