Figure 1

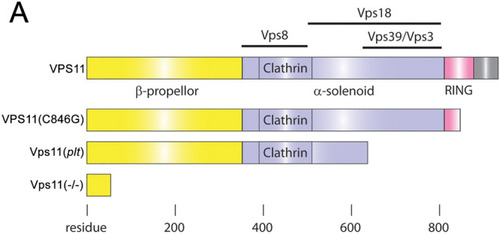

Schematic representation comparing the lengths and interaction domains of human VPS11 and VPS11(C846G) with zebrafish Vps11(plt) and Vps11(−/−). (A) Top: Schematic representation of full-length human VPS11 protein, showing multiple highly-conserved protein domains. Lines above show the putative interactive domains with other Vps effectors based largely on work done in yeast. Below: Schematic representations of human VPS11(C846G), zebrafish Vps11(plt), and zebrafish Vps11(−/−), resulting in presumptively shorter truncated protein products. Note that zebrafish and human sequences do not show 100% nucleic acid identity, but do show conserved protein domains.
