Figure 7
- ID
- ZDB-FIG-211103-34
- Publication
- Lee et al., 2021 - Neuroprotective Effects of Estradiol plus Lithium Chloride via Anti-Apoptosis and Neurogenesis Pathway in In Vitro and In Vivo Parkinson's Disease Models
- Other Figures
- All Figure Page
- Back to All Figure Page

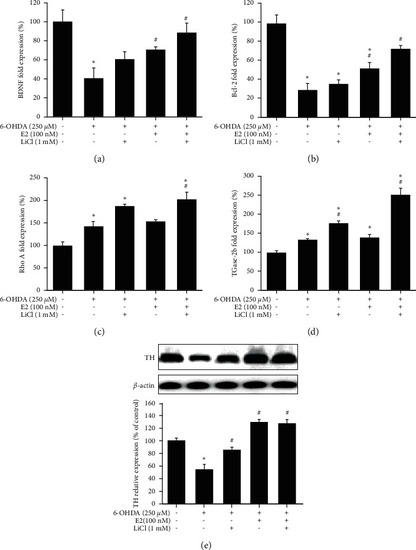

Neuroprotective effect of lithium chloride plus estradiol on the 6-OHDA-induced zebrafish PD model. (a) Zebrafish were pretreated with 1 mM LiCl (9 hpf to 5 dpf) in the absence or presence of 100 nM E2 and then challenged with 250 μM 6-OHDA (2 to 5 dpf). Quantitative PCR of BDNF was performed. (b) Zebrafish were pretreated with 1 mM LiCl (9 hpf to 5 dpf) in the absence or presence of 100 nM E2 and then challenged with 250 μM 6-OHDA (2 to 5 dpf). Quantitative PCR of Bcl-2 was performed. (c) Zebrafish were pretreated with 1 mM LiCl (9 hpf to 5 dpf) in the absence or presence of 100 nM E2 and then challenged with 250 μM 6-OHDA (2 to 5 dpf). Quantitative PCR of Rho A was performed. (d) Zebrafish were pretreated with 1 mM LiCl (9 hpf to 5 dpf) in the absence or presence of 100 nM E2 and then challenged with 250 μM 6-OHDA (2 to 5 dpf). Quantitative PCR of TGase 2b was performed. (e) Zebrafish were pretreated with 1 mM LiCl (9 hpf to 5 dpf) in the absence or presence of 100 nM E2 and then challenged with 250 μM 6-OHDA (2 to 5 dpf). Western blotting of TH was performed. β-Actin was used as an internal control for normalization. The value corresponds to the mean ± SEM of three independent experiments that have been done in triplicate (n = 9). ∗p < 0.05 compared with the control group; #p < 0.05 compared with the 6-OHDA group. |
