FIGURE 1

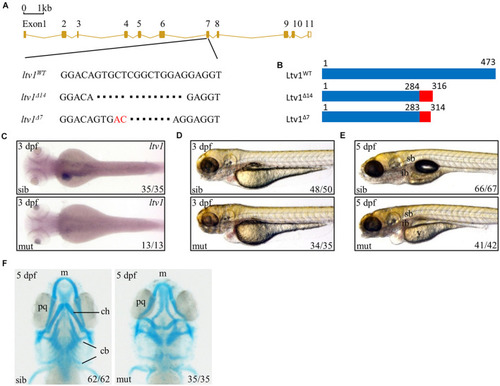

Figure 1. Knockout of ltv1 and craniofacial defects in ltv1^?14/?14 mutant. (A) The sequences flanking the deletion site in ltv1 mutants (ltv1^?7,14) are shown. The deleted nucleotides are denoted by dashes. In ltv1^?7/?7 mutant, 9 bp nucleotides are deleted and 2 bp nucleotides (red font) are inserted. (B) Two ltv1 mutant alleles (ltv1^?14 and ltv1^?7) harbor frameshift mutations that are predicted to give rise to truncated Ltv1 proteins as shown. (C) WISH using ltv1 antisense RNA probe at 3 dpf. (D,E) Representative images of ltv1^?14/?14 mutants and siblings at 3 and 5 dpf. (F) Alcian blue-labeled craniofacial cartilage in ventral view at 5 dpf. Abbreviations used: sb, swimming bladder; ib, intestinal bulb; y, yolk; m, Meckel?s; pq, palatoquadrate; ch, ceratohyal; cb, ceratobranchial.

Expression Data

Gene:	ltv1
Fish:	TU ltv1^swu54/swu54 (TU)
Anatomical Term:	liver
Stage:	Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	ltv1^swu54/swu54 (TU)
Observed In:	ceratobranchial cartilage ceratohyal cartilage head intestine liver Meckel's cartilage palatoquadrate cartilage pericardium swim bladder yolk
Stage Range:	Protruding-mouth to Day 5

Phenotype Detail
