Fig. 6.

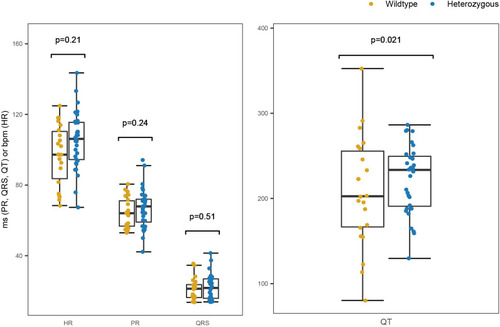

Delayed ventricular repolarization in kcnh6a^s290^/+ mutants.kcnh6a^s290^/+ (heterozygous) mutants displayed a longer QT interval than their kcnh6a^+/+ (wild-type) clutchmates (P=0.021). Measurements were obtained from a total of 54 fish. The P-values were determined from a linear mixed model, in which the date of the ECG recording session was added as a random effect and age, ECG recording location, sex and weight were added as fixed effects; QT interval was additionally adjusted for heart rate. The QT interval plot shows the measurement uncorrected for heart rate.
