Fig. 4.

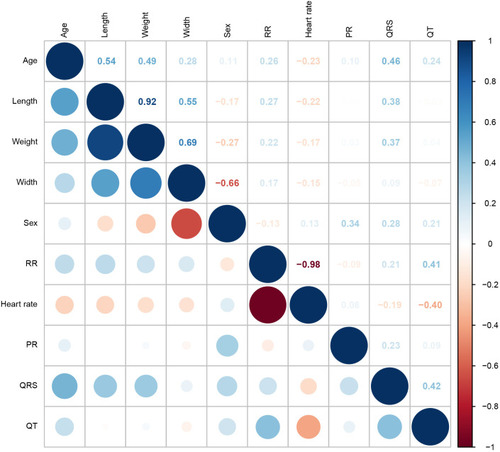

Correlation of zebrafish ECG traits and covariates. Zebrafish ECG traits (heart rate and intervals) are correlated with each other and with body size parameters, sex and age. The correlation matrix is derived from measurements obtained from a total of 70 AB and wild-type fish from the kcnh6a^s290 and kcnh6a^tb218 lines. Positive correlations are colored in blue and negative correlations in red. The color intensity and size of the circles are proportional to the correlation (i.e. a correlation of 0.80 will have a larger and darker red circle than a correlation of 0.10).
