FIGURE 11

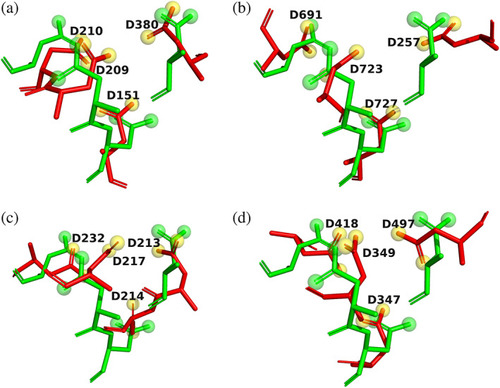

Overlays on Apo TcAChE of the 4D motifs of the four proteins retrieved from the ASSAM server displayed in Figure 8. All metal ions and waters are removed, and only the Asp residues are displayed in stick format. Apo TcAChE is displayed as green sticks, and the retrieved proteins as red sticks, with the distal oxygens shown as green and yellow balls, respectively. (a) Bacillus subtilis phosphodiesterase PhoD (PDB‐ID 2yeq); (b) proton pyrophosphatase (PDB‐ID 4a01); (c) Streptococcus uberis geranylgeranyl diphosphate synthase (PDB‐ID 4lfg); and (d) phosphodiesterase acting on cyclic dinucleotides (PDB‐ID 5xsp)
