FIGURE 10

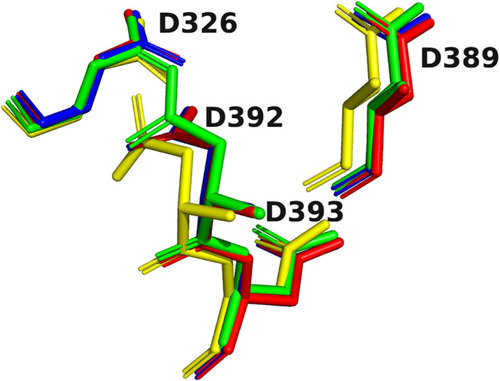

Overlays of the 4D motifs displayed in Figure 5. All metal ions and waters are removed, and only the Asp residues are displayed in stick format. Apo TcAChE in green; Ca⁺²/TcAChE in red; Mg⁺²/TcAChE in blue; UO₂⁺²/TcAChE in yellow
