Figure 10
- ID
- ZDB-FIG-210409-192
- Publication
- Miklosz et al., 2021 - Cardiovascular and Respiratory Toxicity of Protamine Sulfate in Zebrafish and Rodent Models
- Other Figures
- All Figure Page
- Back to All Figure Page

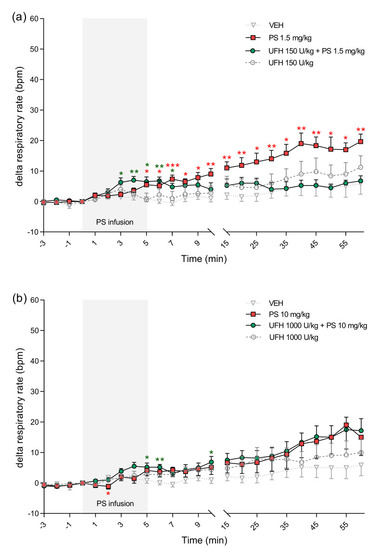

The effects of protamine sulfate (PS) and its complexes with unfractionated heparin (UFH) on respiratory rate. The course of respiratory rate was tracked for 60 min after short–duration intravenous infusion (5 min; 2 mL/h) of PS at dose of 1.5 (a) or 10 mg/kg (b) following intravenous administration of vehicle (VEH, 1 mL/kg) or UFH (150 or 1000 U/kg, 1 mL/kg). Results are shown as means (lines) with SEMs. The respiratory rate at 0 min of the experiment were 68 (43–88) for VEH, 68 (63–70) for PS 1.5 mg/kg, 76 (65–83) for UFH 150 U/kg + PS 1.5 mg, 64 (50–75) for UFH 150 U/kg, 67 (48–90) for PS 10 mg/kg, 67 (40–95) for UFH 1000 U/kg + PS 10 mg/kg, 52 (41–59) for UFH 1000 U/kg. Note: * p < 0.05, ** p < 0.01, *** p < 0.001 vs. VEH, Kruskal–Wallis ANOVA with Dunn’s post–hoc test, n = 5–8. |
