FIGURE

Figure 3

ID

ZDB-FIG-201003-51

Publication

Knuth et al., 2020 - Vitamin D deficiency serves as a precursor to stunted growth and central adiposity in zebrafish

Other Figures

All Figure Page

Back to All Figure Page

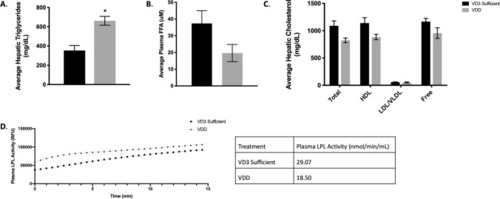

Figure 3

Metabolic homeostasis in VDD liver. (A) VDD fish had significantly elevated levels of hepatic triglycerides (662.37 ± 46.25 mg/dL) 6 mpf. Data are represented as mean ± SEM. (B–D) VDD fish had lower plasma FFA levels (19.67 ± 5.13uM), lower total, HDL, LDL/VLDL, and free hepatic cholesterol (822.7 ± 42.49 mg/dL, 884.9 ± 49.50 mg/dL, 52.7 ± 8.74 mg/dL, 956.2 ± 96.39 mg/dL, respectively) and lower plasma LPL activity (18.5 nmol/min/mL) 6 mpf. Data are represented as mean ± SEM.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB
Condition:	nutrient decreased
Observed In:	blood plasma polyunsaturated fatty acid liver cholesterol liver triglyceride
Stage:	Adult

Phenotype Detail
