Fig. 7

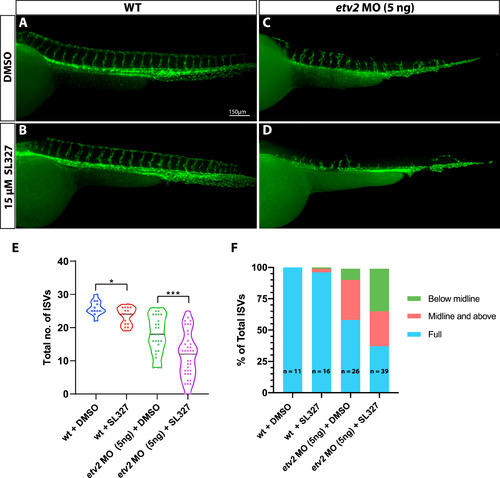

Inhibition of MAPK signaling during vasculogenesis exacerbates angiogenic defects in Etv2-deficient embryos. (A?D) Compound microscope images of 48 hpf Tg(kdrl:GFP) wild-type and etv2 MO (5 ?ng)-injected embryos treated either with DMSO or 15 ??M MAPK inhibitor SL327. Note the severe ISV sprouting defects in etv2 MO ?+ ?SL327 embryos (D) compared to etv2 MO ?+ ?DMSO embryos (C). (E,F) Quantitative analysis of ISV number and height. Note the decrease in total number of ISVs (E) and percentage of full sprouts (F) in etv2 MO ?+ ?SL327 embryos compared to etv2 MO ?+ ?DMSO embryos. ?P ?< ?0.05, ???P ?< ?0.001. Horizontal bar within violin plots represents median.

Expression Data

Gene:	EGFP
Fish:	s843Tg s843Tg + MO2-etsrp
Condition:	chemical treatment: SL-327
Knockdown Reagent:	MO2-etsrp
Anatomical Terms:	blood vasculature blood vessel intersegmental vessel
Stage:	Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	s843Tg s843Tg + MO2-etsrp
Condition:	chemical treatment: SL-327
Knockdown Reagent:	MO2-etsrp
Observed In:	blood vasculature blood vessel intersegmental vessel
Stage:	Long-pec

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 465(1), Chetty, S.C., Sumanas, S., Ets1 functions partially redundantly with Etv2 to promote embryonic vasculogenesis and angiogenesis in zebrafish, 11-22, Copyright (2020) with permission from Elsevier. Full text @ Dev. Biol.
