FIGURE

Fig. 3

ID

ZDB-FIG-200829-3

Publication

Satapathy et al., 2020 - Tumour suppressor 15-hydroxyprostaglandin dehydrogenase induces differentiation in colon cancer via GLI1 inhibition

Other Figures

All Figure Page

Back to All Figure Page

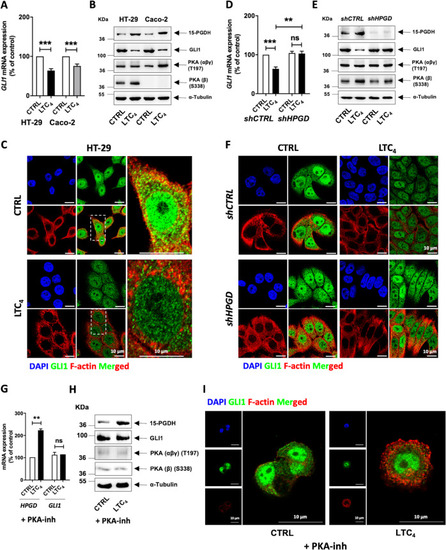

Fig. 3

15-PGDH regulates the LTC<sub>4</sub>-mediated downregulation of Hh–GLI signalling in colon cancer cells.

a qRT-PCR analysis of GLI1 mRNA expression in HT-29 and Caco-2 cells with or without LTC₄ stimulation for 48 h. b Western blot analysis of 15-PGDH, GLI1, and phospho-PKA (αβγ subunit and β subunit) levels in HT-29 and Caco-2 cells with or without LTC₄ stimulation. α-Tubulin served as the loading control. c Immunofluorescence analysis of GLI1 in HT-29 cells with or without LTC₄ stimulation for 48 h. d qRT-PCR analysis of HT-29 cells transfected with control shRNA (shCTRL) or PGDH-specific shRNA (shHPGD) with or without LTC₄ stimulation for 48 h. e Western blot analysis of HT-29 cells transfected with control shRNA (shCTRL) or PGDH-specific shRNA (shHPGD) blotted with antibodies against 15-PGDH, GLI1, or phospho-PKA (αβγ subunit and β subunit) with or without LTC₄ stimulation for 48 h. α-Tubulin served as the loading control. f Immunofluorescence analysis of GLI1 in HT-29 cells transfected with control shRNA (shCTRL) or PGDH-specific shRNA (shHPGD) with or without LTC₄ stimulation for 48 h. g qRT-PCR analysis of 15-PGDH and GLI1 in HT-29 cells treated with the PKA inhibitor H89 (PKA-inh) for 6 h followed by LTC₄ for 48 h. h Western blot analysis showing the expression of 15-PGDH, GLI1, and phospho-PKA (αβγ subunit and β subunit) in HT-29 cells treated with the PKA inhibitor H89 (PKA-inh) for 6 h followed by LTC₄ for 48 h. i Immunofluorescence analysis of GLI1 in HT-29 cells treated with the PKA inhibitor H89 (PKA-inh) for 6 h followed by LTC₄ for 48 h. HPRT1 was used as the housekeeping gene for normalisation of the qRT-PCR gene expression data. Graphs represent the mean ± SEM of data from 3 to 4 independent experiments, **P < 0.01, ***P < 0.001.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Oncogenesis
