Fig. 2

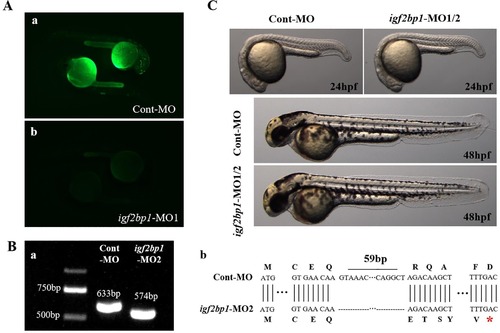

Morpholino-mediated knockdown of igf2bp1. (A) Validation of knockdown efficiency of igf2bp1. Embryos were co-injected with Cont-MO and igf2bp1-GPF (a) or co-injected with igf2bp1-MO1 and igf2bp1-GPF (b). (B) In igf2bp1-MO2, splicing of exon 6 was disrupted with a 59 bp deletion and mRNA translation was prematurely terminated (b), which were indicated by the 633 bp RT-PCR products in Cont-MO and 574 bp in igf2bp1-MO2 (a). (C) No significant developmental malformation was detected in embryos of zebrafish. Cont-MO: Embryos injected with control MO. igf2bp1-MO1/2: Embryos injected with igf2bp1-MO1or igf2bp1-MO2.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB + MO3-igf2bp1 + MO4-igf2bp1
Knockdown Reagents:	MO3-igf2bp1 MO4-igf2bp1
Observed In:	whole organism
Stage Range:	Prim-5 to Long-pec

Phenotype Detail
