ZFIN ID: ZDB-FIG-200514-12
Koth et al., 2020 - Runx1 promotes scar deposition and inhibits myocardial proliferation and survival during zebrafish heart regeneration. Development (Cambridge, England)   147(8) Full text @ Development
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Condition:
Anatomical Term:
Stage: Adult
PHENOTYPE:
Fish:
Condition:
Observed In:
Stage: Adult

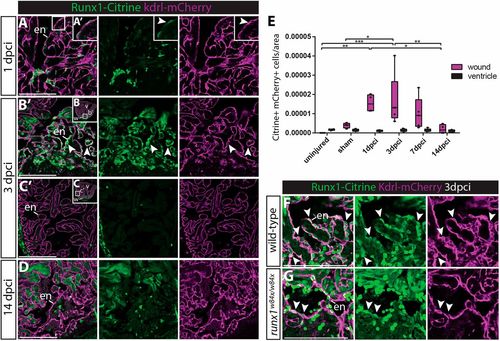

Fig. 4 Runx1-Citrine positive endocardial cells appear in the wound after injury. (A-D,F,G) Immunohistochemistry analysis for Citrine- and mCherry-positive cells in the Tg(BAC-runx1P2:Citrine;kdrl:Hsa.HRAS-mCherry) line. (A,A′) The wound at 1 dpci, with the box highlighting the flat and weakly Citrine- and mCherry-positive endocardial cells in the wound (arrowhead). (B-C′) Clearly visible and round Citrine- and mCherry-positive cells in the wound at 3 dpci (B,B′, arrowheads), but not further away from the wound (C,C′). (D) At 14 dpci, not many double-positive cells are visible anymore. (E) Quantification of the number of Citrine and mCherry double-positive cells in and away from the wound, n=4, two-way ANOVA with Tukey's test. *P<0.05, **P<0.01 and ***P<0.001. Box extends from the 25th to 75th percentiles and whiskers indicate minimum to maximum with all data points shown. (F,G) runx1 mutant wounds have a reduced number of double-positive cells (arrowheads). en, endocardium; v, ventricle; w, wound. Scale bars: 100 μm.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
Citrine ox1Tg; s896Tg control Adult endocardium IHC
ox1Tg; s896Tg cold damage: cardiac ventricle Adult endocardium IHC
runx1hg1/hg1; ox1Tg; s896Tg cold damage: cardiac ventricle Adult endocardium IHC
mCherry ox1Tg; s896Tg control Adult endocardium IHC
ox1Tg; s896Tg cold damage: cardiac ventricle Adult endocardium IHC
runx1hg1/hg1; ox1Tg; s896Tg cold damage: cardiac ventricle Adult endocardium IHC
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
ox1Tg; s896Tg cold damage: cardiac ventricle Adult endocardium Citrine expression increased distribution, abnormal
Adult endocardium mCherry expression increased distribution, abnormal
runx1hg1/hg1; ox1Tg; s896Tg cold damage: cardiac ventricle Adult endocardium Citrine expression decreased distribution, abnormal
Adult endocardium mCherry expression decreased distribution, abnormal
