FIGURE

Fig. 7.

ID
ZDB-FIG-200205-12
Publication
Clark et al., 2019 - Establishment and validation of an endoplasmic reticulum stress reporter to monitor zebrafish ATF6 activity in development and disease
Other Figures
(all 11)
All Figure Page
Back to All Figure Page
Fig. 7.

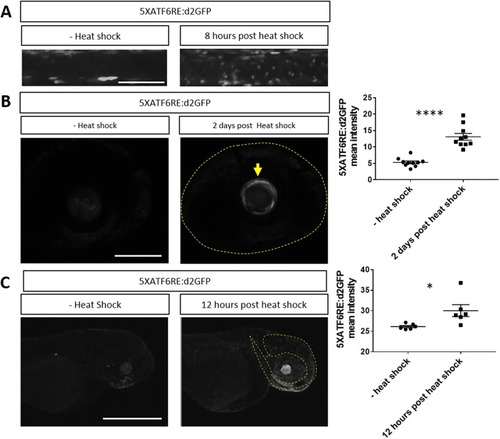

Heat shock activates reporter expression. (A) Representative images showing increased 5XATF6RE:d2GFP expression in the spinal cord 8 h after heat shock compared to a control without heat shock. (B) Representative images and quantification of the lens (indicated by an arrow) revealed significantly higher levels of 5XATF6RE:d2GFP expression 2 days post-heat shock compared to a control without heat shock (P<0.0001). The dashed line outlines the eye. (C) Representative images and quantification of the head region (dashed line) revealed significantly higher levels of 5XATF6RE:d2GFP expression 12 h post-heat shock compared to a control without heat shock (P=0.0248). *P≤0.05; ****P≤0.0001; unpaired Student's t-test. All error bars are s.e.m. Scale bars: 0.1 mm (A,B); 1 mm (C).
Expression Data
Gene:
Fish:
Condition:
Anatomical Terms:
Stage Range: Prim-15 to Protruding-mouth

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Observed In:
Stage Range: Prim-15 to Protruding-mouth

Phenotype Detail
