FIGURE

Fig. 5.

ID
ZDB-FIG-200205-10
Publication
Clark et al., 2019 - Establishment and validation of an endoplasmic reticulum stress reporter to monitor zebrafish ATF6 activity in development and disease
Other Figures
All Figure Page
Back to All Figure Page
Fig. 5.

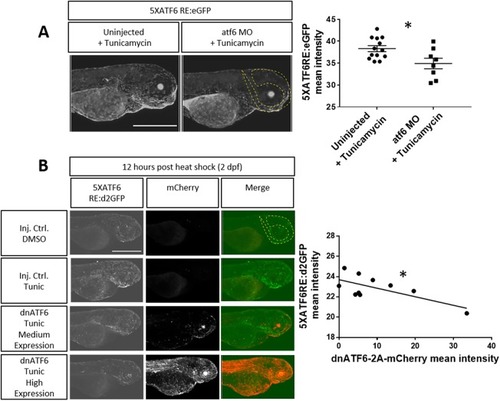

Tunicamycin-induced reporter expression is blocked by inhibiting ATF6 translation and binding. (A) After injection of an atf6 morpholino (atf6 MO) at the one- to four-cell stage to inhibit ATF6 translation, 1-dpf embryos were treated with Tunicamycin (Tunic) and expression at 3 dpf in the head region (dashed line) was quantified. atf6-MO-injected embryos had significantly less 5XATF6RE:eGFP expression compared to tunicamycin-only-treated embryos (P=0.0150). Only embryos with detectable 5XATF6RE:eGFP expression were analyzed. *P<0.05; unpaired Student's t-test. (B) Embryos expressing hsp70:Gal4 and 5XATF6RE:d2GFP transgenes were injected with an mCherry-tagged UAS plasmid to mosaically overexpress dominant-negative ATF6 (dnATF6) that inhibits endogenous ATF6 binding. 2-dpf embryos were heat shocked, treated with tunicamycin, and expression of GFP and mCherry was quantified in the head region (dashed line) 12 h later. Representative images show that, compared to a DMSO-treated injection control, embryos with tunicamycin treatment show increased 5XATF6RE:d2GFP expression, which decreases with increasing dnATF6-2A-mCherry expression, resulting in a significant negative correlation (R2=0.4712, P=0.0284). *P≤0.05; Pearson's correlation coefficient. All error bars are s.e.m. Scale bars: 1 mm.

Expression Data
Gene:
Fish:
Condition:
Knockdown Reagent:
Anatomical Term:
Stage: Protruding-mouth

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Knockdown Reagent:
Observed In:
Stage: Protruding-mouth

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dis. Model. Mech.
