Figure 5

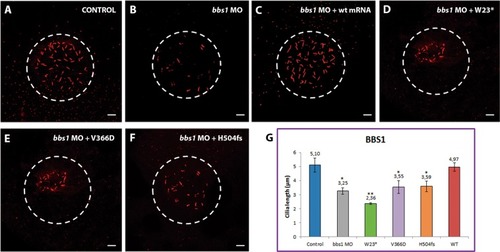

Representative images of KVs and comparison of average cilia length corresponding to BBS1 conditions. Projections of confocal z-stacks of Alexa fluor 594 and Dapi stained cilia located in Kupffer’s vesicle (KV) from control (A) and bbs MO-injected embryos (B), bbs MO-injected embryos plus WT capped-mRNA (C) and bbs MO-injected embryos plus BBS1 new changes (W23*, V366D, H504fs) capped-mRNA. (D–F) Note the reduction of the cilia in bbs1-MO- and BBS1 variants capped-mRNA co-injected embryos. (G) Comparison of average cilia length. *p < 0.01, **p < 0.001. Scales bars: 10 µm.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	TU + MO1-bbs1
Knockdown Reagent:	MO1-bbs1
Observed In:	Kupffer's vesicle cilium
Stage Range:	5-9 somites to 10-13 somites

Phenotype Detail
