Figure 4

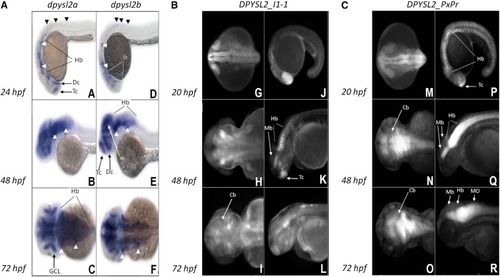

Expression pattern of ZF dpysl2 genes and DPYSL2_I1-1and DPYSL2_ShortProm elements in transgenic ZF. (A): A, B, C, D, E, F: dpysl2a and dpysl2b whole-mount in situ hybridizations at 24, 48, and 72 hpf. (B): G, H, I, J, K, L: Transgenic ZF line for DPYSL2_I1-1 element driving EGFP reporter expression at 20, 48 and 72 hpf. (C): M, N, O, P, Q, R: Transgenic ZF line for DPYSL2_ShortProm element driving EGFP expression at 20, 48, and 72 hpf; Cb, cerebellum; Dc, diencephalon; GCL, retinal ganglion cell layer; Hb, hindbrain; Mb, midbrain; MO, medulla oblongata; Tc, telencephalon. White arrowheads, anterior and posterior lateral line; black arrowheads, Rohon-Beard neurons; anterior is to the left. A, B, D, E, J, K, L, P, Q, and R: lateral view; C, F, G, H, I, M, N, and O: dorsal view.
