Fig. 4

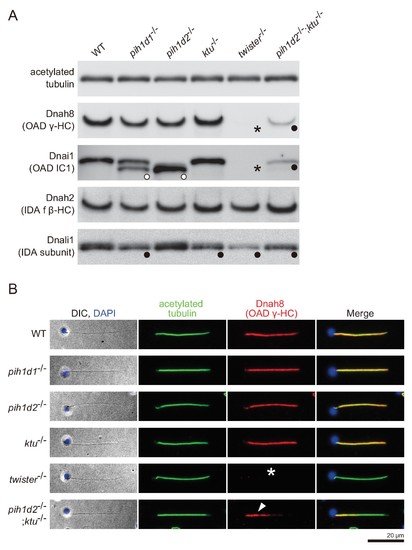

Immunoblot and immunofluorescence microscopy of axonemal dyneins.

(A) Immunoblot of sperm axonemes. Asterisks, filled circles, and open circles indicate missing, decreased, and shifted bands, respectively. Acetylated tubulin: control. (B) Immunofluorescence microscopy of zebrafish spermatozoa. Dnah8 was localized along the entire length of sperm flagella in WT, pih1d1^-/-, pih1d2^-/-, ktu^-/-. In twister^-/-, Dnah8 was lost (white asterisk), while in pih1d2^-/-;ktu^-/-, Dnah8 was localized only in the proximal half of the flagella (white arrowhead).

Expression Data

Antibodies:	Ab1-dnah2 Ab1-dnah5l Ab1-dnai1 Ab1-dnali1
Fish:	WT dnaaf2^ja104/ja104 (TL) dnaaf6^ja105/ja105 (TL) pih1d1^ja102/ja102 pih1d2^ja103/ja103 pih1d2^ja103/ja103; dnaaf2^ja104/ja104
Anatomical Terms:	sperm axoneme sperm sperm flagellum
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	dnaaf2^ja104/ja104 (TL) dnaaf6^ja105/ja105 (TL) pih1d1^ja102/ja102 pih1d2^ja103/ja103; dnaaf2^ja104/ja104
Observed In:	sperm axoneme sperm sperm flagellum
Stage:	Adult

Phenotype Detail
