Fig. 1

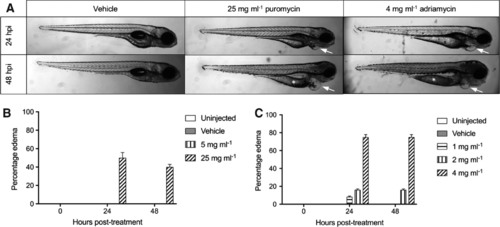

Determination of pharmacological injury doses—1 nL injection at 3 dpf.(A) Representative images showing pericardial edema (arrows) and remaining yolk reserves (*) presented in a portion of larvae administered adriamycin or puromycin. (B) Five milligrams per milliliter puromycin does not result in edema. Increasing the puromycin dose to 25 mg mL−1 causes edema in >40% of fish from 24 hpi (mean ± SEM). (C) Four milligrams per milliliter adriamycin causes edema in >75% of larvae by 24 hpi (mean ± SEM). SEM, standard error of the mean; dpf, days postfertilization; hpi, hours postinjection. |
Expression Data
Expression Detail
Antibody Labeling
Phenotype Data
| Fish: | |
|---|---|
| Conditions: | |
| Observed In: | |
| Stage: | Protruding-mouth |
