ZFIN ID: ZDB-FIG-180209-4
Botthof et al., 2017 - Loss of the homologous recombination gene rad51 leads to Fanconi anemia-like symptoms in zebrafish.. Proceedings of the National Academy of Sciences of the United States of America   114(22):E4452-E4461 Full text @ Proc. Natl. Acad. Sci. USA
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Fish:
Anatomical Term:
Stage: Day 4
PHENOTYPE:
Fish:
Observed In:
Stage Range: Day 4 to Adult

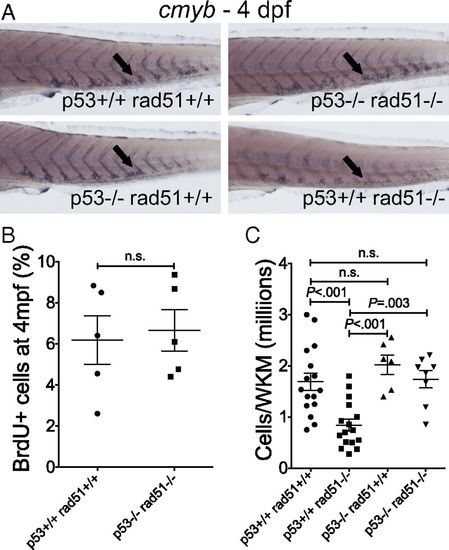

Fig. 5

The HSPC defects in rad51sa23805 fish are rescued in a p53 mutant background. (A) Representative images of 4-dpf embryos resulting from in-crosses of p53+/− rad51+/− parents stained using a cmyb-specific probe. The total number of embryos used (all genotypes) n = 237 from four clutches. For information about all genotypes, see SI Appendix, Table S3. Arrows indicate HSPCs. (Magnification, 100×.) (B) Percentage of BrdU+ cells in the kidney at 4 mpf at 1 dpi. Two-sided Student’s t test, np53+/+ rad51+/+ = 5, np53−/− rad51−/− = 5. (C) Number of total cells per kidney at 4 mpf quantified using a hemocytometer. Analysis using one-way ANOVA [F(3, 43) = 10.45, P < 0.0001], individual P values shown in the figure are from Tukey’s post hoc test, np53+/+ rad51+/+ = 16, np53+/+ rad51−/− = 16, np53−/− rad51+/+ = 6, np53−/− rad51−/− = 8. Bars represent mean ± SEM in B and C; n.s., not significant.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
myb rad51sa23805/sa23805 ; tp53zdf1/zdf1 standard conditions Day 4 hematopoietic stem cell ISH
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
rad51sa23805/sa23805 ; tp53zdf1/zdf1 standard conditions Day 4 blood island hematopoietic stem cell amount, ameliorated
Adult head kidney hematopoietic stem cell amount, ameliorated
Adult head kidney hematopoietic stem cell proliferation rate, ameliorated
