ZFIN ID: ZDB-FIG-180208-1
Louw et al., 2018 - Compound heterozygous loss-of-function mutations in KIF20A are associated with a novel lethal congenital cardiomyopathy in two siblings. PLoS Genetics   14:e1007138 Full text @ PLoS Genet.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Fish:
Knockdown Reagent:
Anatomical Term:
Stage Range: 1-cell to Day 6
PHENOTYPE:
Fish:
Knockdown Reagent:
Observed In:
Stage Range: Long-pec to Day 4

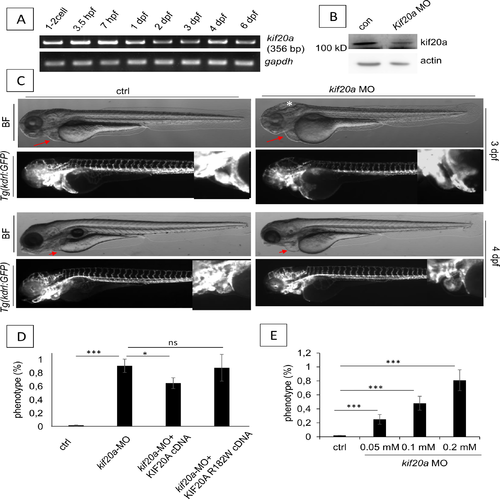

Fig. 5

Zebrafish kif20a knockdown studies.

(A) RT-PCR analysis of zebrafish kif20a gene expression during early stages. Gapdh was used as a housekeeping gene. (B) Western blot analysis of whole lysates from control and kif20a morphants showing a 74% protein reduction. Actin was used as a loading control. (C) Morphological analysis of zebrafish control and kif20a morphants at 3–4 dpf. Upper panel: Bright-field and fluorescence images of zebrafish control and kif20a morphants at 3 dpf. The white star indicates cerebral oedema in the morphants, the red arrows indicate the cardiac region where cardiac oedema is pronounced in the morphants and absent in controls. Lower panel: Bright-field and fluorescence images of zebrafish control and kif20a morphants at 4 dpf. The red arrows indicate the cardiac region where cardiac oedema is pronounced in the morphants and absent in controls. (D) Rescue experiments where embryos were injected with kif20a-MO only, or co-injected with human KIF20A WT cDNA or KIF20A R182W cDNA. The percentage of cardiac phenotype in each groups at 3 dpf is presented. Data are represented as mean ± SD. Stars represent the results of one-way ANOVA-Dunnett’s post hoc test (*p<0.05, **p < 0.01, ***p<0.001, ns is not significant). (E) Dose dependent effect of kif20a-MO with varying concentrations of kif20a-MO (range 0–2 mM), injection dose was 4.6 nl. The percentage of cardiac phenotype at 3 dpf is shown.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
kif20a WT control Long-pec whole organism WB
WT standard conditions 1-cell to 2-cell whole organism RTPCR
High whole organism RTPCR
Shield whole organism RTPCR
Prim-5 whole organism RTPCR
Long-pec whole organism RTPCR
Protruding-mouth whole organism RTPCR
Day 4 whole organism RTPCR
Day 6 whole organism RTPCR
WT + MO1-kif20a standard conditions Long-pec whole organism WB
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
WT + MO1-kif20a standard conditions Long-pec whole organism kif20a expression decreased amount, abnormal
s843Tg + MO1-kif20a standard conditions Protruding-mouth brain edematous, abnormal
Protruding-mouth pericardium edematous, abnormal
Day 4 pericardium edematous, abnormal
