ZFIN ID: ZDB-FIG-171117-5
Lee et al., 2016 - Myc and Fgf Are Required for Zebrafish Neuromast Hair Cell Regeneration. PLoS One   11:e0157768 Full text @ PLoS One
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Antibody:
Fish:
Conditions:
Anatomical Term:
Stage: Days 7-13
PHENOTYPE:
Fish:
Conditions:
Observed In:
Stage: Days 7-13

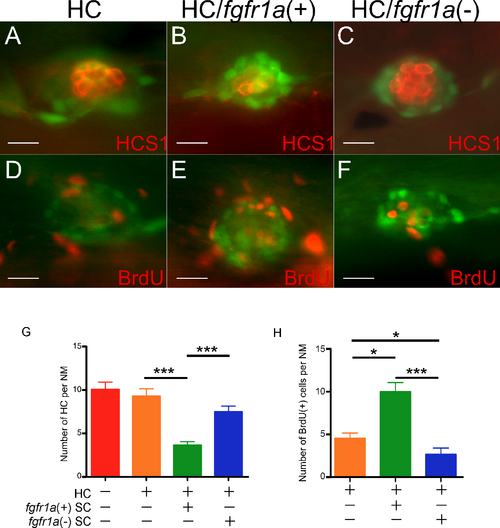

Fig. 5

Neuromast SCs with different capacities in HC regeneration and proliferation.

Hybrid larvae of pou4f3:GFP and ET20 fish ablated in HCs only (A,D), HC/fgfr1a(+) SCs (B,E), or HC/fgfr1a(-) SCs (C,F) were stained with HCS1 (A-C) or BrdU (D-F) antibody, to illustrate proliferating (BrdU+) and regenerated HCs (HCS1+). (G) Quantification showed that only HC/fgfr1a(+) SC ablation significantly reduced the regenerated HCs. (H) Quantification showed that HC/fgfr1a(+) SC ablation increased the number of proliferating cells; whereas HC/fgfr1a(-) SC ablation reduced the proliferating cells. (G,H) ***p<0.001; *p<0.05. n = 12 in each group. Scale bars: 10 μm.

Gene Expression Details No data available
Antibody Labeling Details
Antibody Assay Fish Conditions Stage Anatomy
Ab1-otof IHC s356tTg; sqet20Et light ablation: neuromast hair cell Days 7-13 neuromast hair cell
IHC s356tTg; sqet20Et light ablation: neuromast hair cell, light ablation: neuromast support cell Days 7-13 neuromast hair cell
Phenotype Details
Fish Conditions Stage Phenotype
s356tTg; sqet20Et light ablation: neuromast hair cell Days 7-13 neuromast hair cell amount, normal
s356tTg; sqet20Et light ablation: neuromast hair cell, light ablation: neuromast support cell Days 7-13 neuromast hair cell decreased amount, abnormal
