Fig. 8

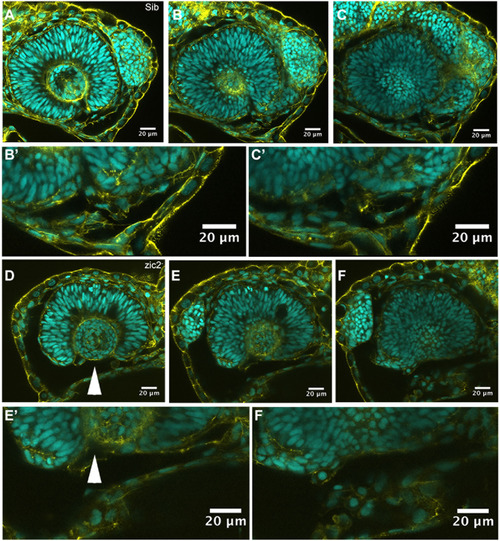

Ventral periocular neural crest is depleted in MZ-zic2 mutants. Single confocal sections through optic cups of embryos derived from zic2a^gbt133/+; zic2b¹¹¹⁶/zic2b¹¹¹⁶ parents. A-C?: embryo with normal retinal morphology. D-F?: embryo with coloboma. Embryos were imaged in lateral mounts. Cyan = nuclei visualized by DAPI; yellow=F-actin cytoskeleton visualized by phalloidin. Arrowheads point to aberrant gap in the ventral retina (coloboma). Embryos are shown in lateral views, anterior to the right (A-C) or anterior to the left (E-G). B?, C?, E?, F? are enlarged from B, C, E and F, respectively.
