Fig. 1

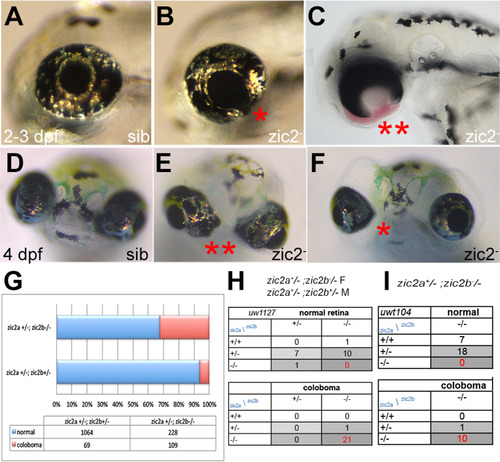

Zebrafish Zic2 is required during retinal morphogenesis. A: normal retinal morphology. B: retina exhibiting mild coloboma (*). C: retina exhibiting severe coloboma with periocular hemorrhaging (**). D: normal retinal morphology. E: bilateral coloboma in a severely affected embryo (**). F: mild, unilateral coloboma in an affected embryo. G: Penetrance and expressivity of coloboma is increased in progeny that lack maternal zic2b, derived from zic2a^gbt133/+; zic2b^t104/zic2b^t104 parents, compared to those from double heterozygous (zic2a^gbt133/+; zic2b^t104/+) parents (see Table S1 for details). H, I: Both CRISPR- and TALEN-induced mutant alleles of zic2b are tightly associated with coloboma in MZ-zic2 embryos. Embryos in A-C are at 2–3 dpf, shown in lateral views, anterior to the left. Embryos in D-F are at 4 dpf, shown in anterior views, dorsal at the top.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	zic2b^{uw1127/uw1127}; zic2a^{mn0133Gt/mn0133Gt} zic2b^{uwt104/uwt104}; zic2a^{mn0133Gt/mn0133Gt}
Observed In:	retina retina morphogenesis in camera-type eye
Stage:	Day 4
