Fig. S4

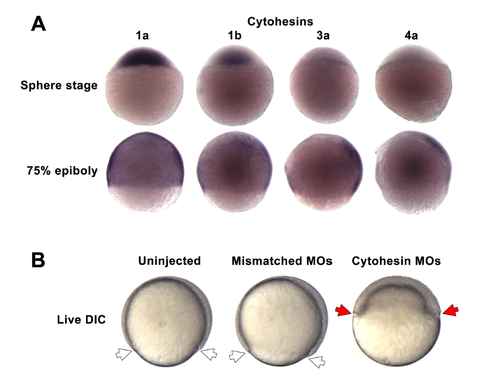

Expression and perturbation of zebrafish cytohesin genes (Related to Figure 5). (A) In situ hybridization detects the expression of four cytohesin genes (1a, 1b, 3a and 4a) in the blastoderm during epiboly. Each was undetectable in the yolk (base of each embryo). These data show that the cytohesins targeted by the morpholino cocktail are normally expressed in the blastoderm, the tissue disrupted by the morpholino cocktail (Figure 5A-D). (B) The cytohesin morpholino cocktail (targeting cytohesins 1a, 1b, 3a and 4a) consistently produced a severe delay in epiboly not observed in embryos injected with the mismatch morpholino cocktail nor in uninjected embryos (seen in three separate experiments; 20-30 embryos were injected for each cocktail in each experiment). Controls for data shown in Figure 5A-D.

Expression Data
Genes:
Fish:
Anatomical Term:
Stage Range: Sphere to 75%-epiboly

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagents:
Observed In:
Stage: 90%-epiboly

Phenotype Detail
