Fig. 6

ID

ZDB-FIG-170523-14

Publication

Jacob et al., 2017 - Paxillin Genes and Actomyosin Contractility Regulate Myotome Morphogenesis in Zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 6

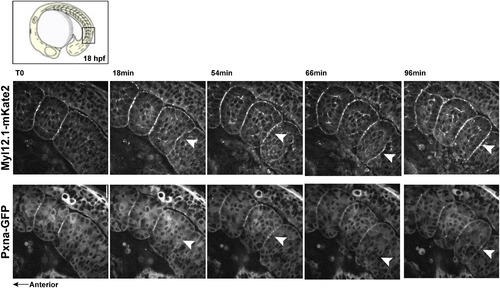

Localization of NMM-II to somite boundaries precedes Pxna recruitment. Montage of live imaging of somite boundary formation at 18 hpf in the tail (boxed region of embryo diagram) of double transgenic embryos that express Myl12.1-mKate2 and Pxna-GFP fusion proteins. Arrowheads depict forming somite boundaries in each channel.

Expression Data

Genes:	EGFP mKate2
Fish:	mai1Tg; sny125Tg
Anatomical Term:	somite border
Stage:	14-19 somites

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 425(1), Jacob, A.E., Amack, J.D., Turner, C.E., Paxillin Genes and Actomyosin Contractility Regulate Myotome Morphogenesis in Zebrafish, 70-84, Copyright (2017) with permission from Elsevier. Full text @ Dev. Biol.
