FIGURE

Fig. 4

ID

ZDB-FIG-161115-6

Publication

Taylor et al., 2016 - Molecular fingerprinting delineates progenitor populations in the developing zebrafish enteric nervous system

Other Figures

All Figure Page

Back to All Figure Page

Fig. 4

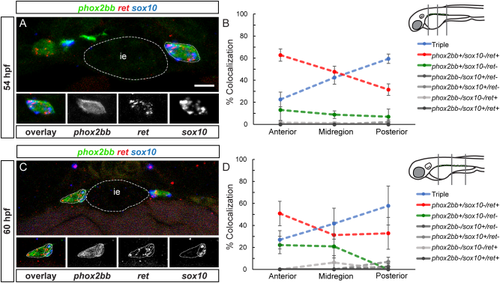

Colocalization of ret and sox10 with phox2bb reveals a total of three enteric progenitor subpopulations. A and C show confocal images of cross-sections through the trunk. At 54 (A) and 60 (C) hpf, phox2bb (green), ret mRNA (red) and sox10 mRNA (blue) colocalize in subpopulations. Insets show close-up of outlined cell(s), overlay, phox2bb, ret mRNA, sox10 mRNA (from left to right). Note that phox2bb refers to phox2bb:EGFP expression as described in the text. At 54 (B) and 60 (D) hpf, quantification in percent of phox2bb, ret and sox10 colocalization in the three regions analyzed. The dotted line between the measured values does not show the continuous percentage of coexpression between the anterior, mid and posterior values, but is drawn to facilitate visualization of coexpression trends. ie, intestinal epithelium. Scale bar = 10 μm.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Dyn.
