Fig. 5

ID

ZDB-FIG-160913-4

Publication

Veldman et al., 2015 - The N17 domain mitigates nuclear toxicity in a novel zebrafish Huntington's disease model

Other Figures

All Figure Page

Back to All Figure Page

Fig. 5

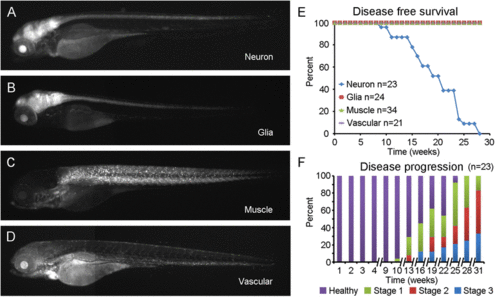

Neuron specific activation of mHTT-ΔN17-exon1 causes motor behavioral phenotype. a elavl3:cre (n = 23), b gfap:cre (n = 24), c mylpfa:cre (n = 34), and d etv2:cre (n = 21) transgenic lines were incrossed to mHTT-ΔN17-exon1 to activate the transgene specifically in neurons, glia, muscle, and vascular cell lineages respectively. GFP fluorescence in living embryos demonstrates the spatially restricted expression of each line at 5 days post fertilization. e A disease free survival curve demonstrating that only elavl3:cre/mHTT-ΔN17-exon1 fish develop a behavioral phenotype similar to ubiquitous activation of mHTT-ΔN17-exon1, p < 0.01, Kaplan Meier survival analysis. f Disease progression of elavl3:cre/mHTT-ΔN17-exon1 fish is similar to ubiquitious mHTT-ΔN17-exon1 fish although temporally delayed, note the discontinuous x-axis (n = 23). Behavioral Stages are described in Fig. 2.

Expression Data

Gene:	EGFP
Fish:	zf696Tg; zf703Tg zf697Tg; zf703Tg zf698Tg; zf703Tg zf699Tg; zf703Tg
Anatomical Terms:	muscle nervous system glial cell nervous system neuron vasculature
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	zf696Tg; zf703Tg
Observed In:	swimming behavior voluntary musculoskeletal movement whole organism
Stage Range:	Days 45-89 to Adult

Phenotype Detail
