Fig. S9

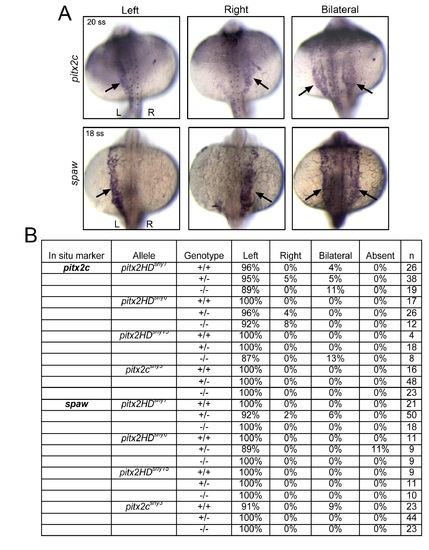

Asymmetric expression of spaw and pitx2c is normal in pitx2 mutants. (A) RNA in situ hybridizations of pitx2c (20 somite stage) and spaw expression (18 somite stage). Representatives of left-sided, right-sided or bilateral expression in lateral plate mesoderm (arrows) are shown. (B) Normal left-sided expression of pitx2c and spaw was observed in most pitx2HD and pitx2c embryos. All embryos were genotyped following in situ hybridization analysis. |
