FIGURE

Fig. S3

ID
ZDB-FIG-160505-28
Publication
Tan et al., 2016 - Stress from Nucleotide Depletion Activates the Transcriptional Regulator HEXIM1 to Suppress Melanoma
Other Figures
All Figure Page
Back to All Figure Page

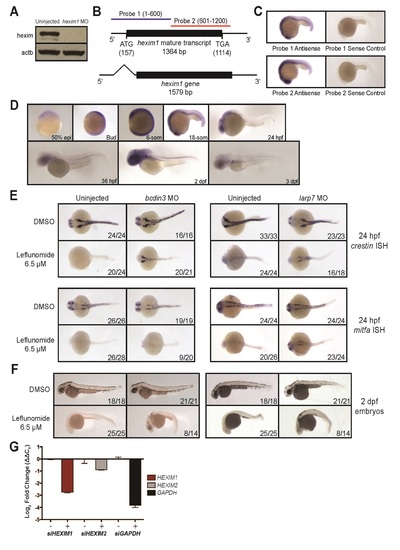

Fig. S3

Knockdown of bcdin3 and larp7 rescues nucleotide stress-induced phenotypes in the neural crest where hexim1 is expressed, related to Figure 3.

(A) Western blot for hexim1 and β-actin (actb) in uninjected and 8 ng of hexim1 MO injected embryos at 24 hpf.

(B) Two 600 bp in situ hybridization probes to the mature hexim1 transcript were designed.

(C) Both antisense probes and their corresponding sense controls were tested on 18-somite stage zebrafish embryos (~20 embryos per condition).

(D) Zebrafish hexim1 expression at various developmental stages with probe 1 (~20 embryos per stage). Results are identical if probe 2 is used.

(E) Zebrafish embryos were injected with 10 ng of bcdin3 or 12 ng of larp7 MOs that were previously published. Embryos were treated with either DMSO or 6.5 µM leflunomide at 50% epiboly and subjected to in situ hybridization at 24 hpf for crestin and mitfa expression. Dorsal views of embryos are shown. Numbers indicate the number of embryos with the shown phenotype vs. the total number of embryos in the clutch.

(F) Embryos treated as described in (E) were also scored for melanocytes at 2 dpf.

(G) Real time RT-PCR validation of HEXIM1, HEXIM2 and GAPDH knockdown in the A375 cells by pooled siRNAs (mean of 3 replicates ± SD). Data is normalized to ACTB.

Expression Data
Genes:
Fish:
Condition:
Knockdown Reagents:
Anatomical Terms:
Stage Range: 50%-epiboly to Protruding-mouth

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Knockdown Reagents:
Observed In:
Stage Range: Prim-5 to Long-pec

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Mol. Cell
