FIGURE

Fig. 5

ID
ZDB-FIG-160226-1
Publication
Seixas et al., 2016 - Arl13b and the exocyst interact synergistically in ciliogenesis
Other Figures
All Figure Page
Back to All Figure Page
Fig. 5

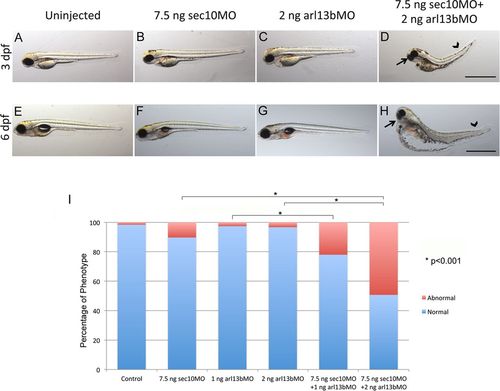

arl13b and sec10 interact synergistically in cilia-related phenotypes. (A–H) Gross phenotypes of zebrafish embryo morphants at 3 d postfertilization (dpf) (A–D) and 6 dpf (E–H), on lateral view, after injection of MOs for arl13b and/or sec10. A synergistic interaction resulting in small eyes (arrow), pericardial edema (asterisk), and tail curvature (arrowhead) was observed upon coinjection of suboptimal doses of 2 ng of arl13b MO plus 7.5 ng of sec10 MO at both 3 and 6 dpf (D and H, respectively), which do not result in an abnormal phenotype when injected alone (B, C, F, and G); n = 535. (I) Histogram showing quantification of the effect of MOs at 3 dpf. Coinjection of suboptimal doses of 2 ng of arl13b MO plus 7.5 ng of sec10 MO results in a significant increase in the percentage of abnormal phenotypes (*p < 0.001) compared with injection of the MO alone (2 ng of arl13b MO or 7.5 ng of sec10 MO). Scale bars, 1 mm.

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagents:
Observed In:
Stage Range: Protruding-mouth to Day 6

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Mol. Biol. Cell
