ZFIN ID: ZDB-FIG-160210-20
Chiavacci et al., 2015 - MicroRNA 19a replacement partially rescues fin and cardiac defects in zebrafish model of Holt Oram syndrome. Scientific Reports   5:18240 Full text @ Sci. Rep.
ADDITIONAL FIGURES
PHENOTYPE:
Fish:
Knockdown Reagents:
Observed In:
Stage Range: Long-pec to Protruding-mouth

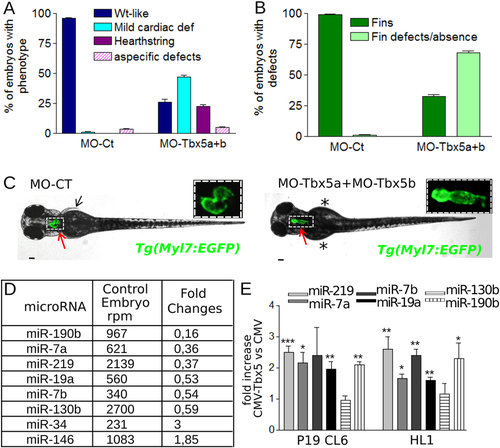

Fig. 1

Tbx5a/b downregulation dysregulates miRNA expression during zebrafish development.

(A,B) Cardiac (A) and fin (B) analysis of 72 hpf embryos injected with 3 ng of MO-Ct or 1.5 ng of MO-Tbx5a and 1.5 ng of MO-Tbx5b. (C) Images representative of WT-like and heartstring Tg(Myl7:EGFP) morphants at 72 hpf. Red and black arrows point to heart and fins, respectively. Stars mark fin absence. Scale bar 100 ┬Ám. Heart higher magnification in insets. (D) List of miRNAs that showed a positive or negative fold change e1.8 and a number of reads per million (rpm) higher than 200 in the Tbx5 depleted embryos (MO-Tbx5a + MO-Tbx5b). (E) QRT-PCR analysis of mouse P19CL6 proliferating cells or HL1 cells 48 hrs after transfection with Tbx5 expressing vector or with an empty vector. t-test was used for statistical analysis.

Gene Expression DetailsNo data available
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
AB + MO1-tbx5a + MO2-tbx5b standard conditions Protruding-mouth fin absent, abnormal
Protruding-mouth fin morphology, abnormal
Protruding-mouth heart morphology, abnormal
twu34Tg + MO1-tbx5a + MO2-tbx5b standard conditions Long-pec heart morphology, abnormal
Acknowledgments:
ZFIN wishes to thank the journal Scientific Reports for permission to reproduce figures from this article. Please note that this material may be protected by copyright. Full text @ Sci. Rep.
