Fig. 2

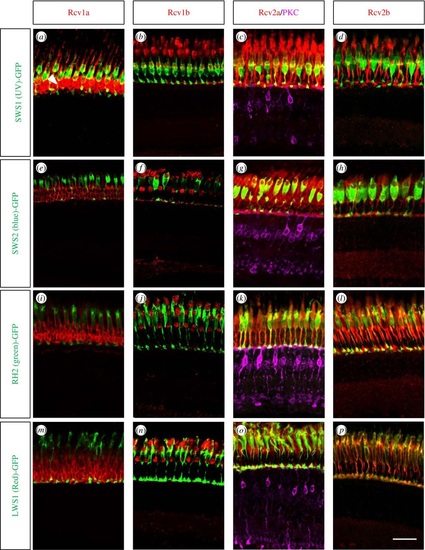

Zebrafish Recoverins are expressed in the different cone subtypes. Adult retinal sections from transgenic zebrafish highlighting the different cone subtypes were co-stained with Rcv antibodies. White arrowhead in (a) marked the rod photoreceptors. While Rcv1b, Rcv2a and Rcv2b proteins are present in all cone subtypes, Rcv1a is only expressed in rods and UV cones. In order to highlight also ON-bipolar cells, Rcv2a antibodies were supplemented with PKC antibodies (violet staining). Scale bar (=20 µm) applies to all panels.

Expression Data

Genes:	EGFP GFP
Antibodies:	Ab1-prkc Ab1-rcvrn2 Ab1-rcvrn3 Ab1-rcvrna Ab1-rcvrnb
Fish:	kj4Tg kj9Tg kj11Tg kj19dTg
Anatomical Terms:	blue sensitive photoreceptor cell eye photoreceptor cell green sensitive photoreceptor cell ON-bipolar cell red sensitive photoreceptor cell retinal cone cell retinal inner nuclear layer retinal rod cell UV sensitive photoreceptor cell
Stage:	Adult
