Fig. S3

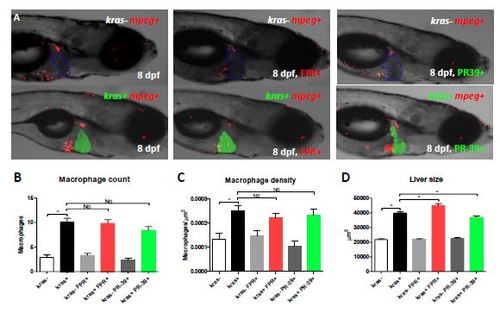

Lack of effect of FPRA14 and PR-39 on macrophages. (A) Representative images of 8-dpf kras-/mpeg+ (top row) and kras+/mpeg+ (bottom row) larvae treated with doxycycline alone (left), FPR-A14 and doxycycline ( middle) or PR-39 and doxycycline ( right) as indicated. Livers in kras- larvae are outlined. (B-D) Macrophage counts (B) and density (C) in the liver and liver size (D) after chemical treatment in the larvae (n>17 in each group). Statistical significant: *p<0.05.
