Fig. 1

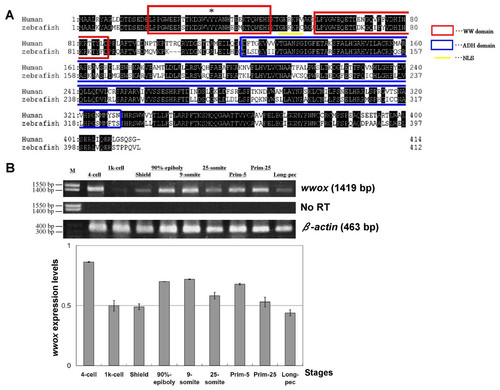

Alignment of human and zebrafish WWOX amino acid sequences, and expression of zebrafish wwox using RT-PCR.

(A) Human and zebrafish WWOX amino acid sequence alignments Human WWOX (accession no. AF187014), zebrafish wwox (accession no. BC044560), the WW domain (amino acids 18–47 and 59–87, circled with red boxes), the NLS (amino acids 50–55, underlined), the ADH domain (amino acids 121–330, circled with a blue box) and Tyr³³ (*) are shown. (B) Expression of zebrafish wwox at various developmental stages was determined using RT-PCR and gel image analyses were normalized to β-actin expression (accession no. AF057040.1). Data are presented as means ± SEM; M, marker; No RT, RT-PCR reaction without reverse transcriptase.

Expression Data

Gene:	wwox
Fish:	WT
Anatomical Term:	whole organism
Stage Range:	4-cell to Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
