Fig. 2

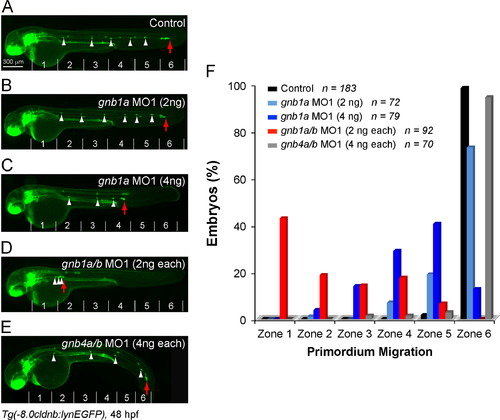

Gβ1, but not Gβ4, is required for migration of the pLLP. (A-E) Epifluorescence images of 48-hpf Tg(-8.0cldnb:lynEGFP) control embryos (A), embryos injected with MOs targeting gnb1a (B, C), gnb1a/b (D) or gnb4a/b (E). All images are lateral views with anterior to the left. White arrowheads, NMs. The embryo was subdivided into six equal sections (zones 1-6) from the ear to the tip of the tail. (F) Quantification of pLLP migration relative to the position of the posterior-most deposited NM (red arrows in A-E). The number of animals/injection is indicated.

Expression Data

Gene:	EGFP
Fish:	zf106Tg zf106Tg + MO2-gnb1a + MO4-tp53 zf106Tg + MO1-gnb4a + MO1-gnb4b + MO4-tp53 zf106Tg + MO2-gnb1a + MO2-gnb1b + MO4-tp53
Knockdown Reagents:	MO1-gnb4a MO1-gnb4b MO2-gnb1a MO2-gnb1b MO4-tp53
Anatomical Terms:	lateral line neuromast posterior lateral line primordium
Stage:	Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	zf106Tg + MO2-gnb1a + MO4-tp53 zf106Tg + MO1-gnb4a + MO1-gnb4b + MO4-tp53 zf106Tg + MO2-gnb1a + MO2-gnb1b + MO4-tp53
Knockdown Reagents:	MO1-gnb4a MO1-gnb4b MO2-gnb1a MO2-gnb1b MO4-tp53
Observed In:	neuromast posterior lateral line neuromast deposition posterior lateral line neuromast primordium migration whole organism
Stage:	Long-pec

Phenotype Detail
