Fig. 1
- ID
- ZDB-FIG-140326-42
- Publication
- Nissen et al., 2003 - Zebrafish foxi one modulates cellular responses to Fgf signaling required for the integrity of ear and jaw patterning
- Other Figures
- (all 9)
- All Figure Page
- Back to All Figure Page

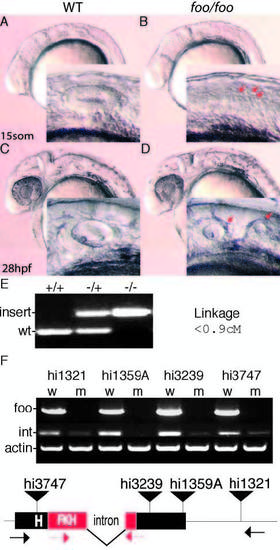

Mutations in zebrafish foxi one cause defects in otic vesicle formation. (A) Lateral view of a wild-type embryo at 15 somites; inset is a magnification of the otic placode. (B) foo/foo embryo at 15 somites; arrows indicate putative placodes. (C) Wild-type ear at 28 hpf. (D) foo/foo embryo at 28 hpf; otic vesicle is clearly split into two smaller vesicles; arrows in inset indicate the two visible vesicles. (E) PCR products from genomic DNA indicating wild-type and mutant alleles of foo with the results of the linkage analysis in centimorgans. (F) RT-PCR analysis of each allele was performed. Wild-type, w; mutant, m. Bands marked foo use primers indicated by black arrows below; bands marked ?int? use primers indicated by red arrows. Integration for each allele is marked by a black triangle. The intron and the forkhead (FKH)-related DNA-binding domain are also indicated. |
Fish: | |
---|---|
Observed In: | |
Stage Range: | 14-19 somites to Prim-5 |
