Fig. 4

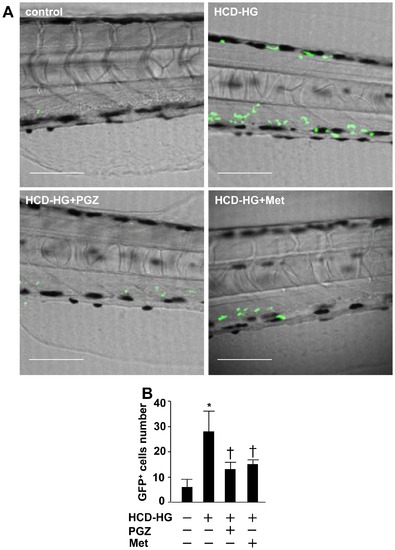

HCD-HG treatment induced inflammatory cells infiltration.

A: HCD-HG treatment resulted in the increased number of GFP⁺ cells around the caudal vein. B: GFP⁺ cells that locate within 50 μm from the lumen of the caudal artery were counted. n>5 in each group and the experiment was repeated for three times. The results were compared between normal and HCD-HG treated group, HCD-HG treated group and HCD-HG+ pioglitazone or metformin group respectively compared between the four groups by Student t test, p<0.05. Scale bar = 80 μm. Asterisk (*): Comparison of the number of GFP⁺ cells between control group and HCD-HG group. Cross(†): Comparison of the number of GFP⁺ cells between HCD-HG group and drug treatment groups, respectively.

Expression Data

Gene:	EGFP
Fish:	nz117Tg
Conditions:	high cholesterol, high glucose chemical treatment: metformin, high cholesterol, high glucose chemical treatment: pioglitazone, high cholesterol, high glucose
Anatomical Terms:	granulocyte macrophage
Stage:	Days 14-20

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	nz117Tg
Conditions:	high cholesterol, high glucose chemical treatment: metformin, high cholesterol, high glucose chemical treatment: pioglitazone, high cholesterol, high glucose
Observed In:	caudal vein inflammatory response myeloid cell
Stage:	Days 14-20

Phenotype Detail
