Fig. 3

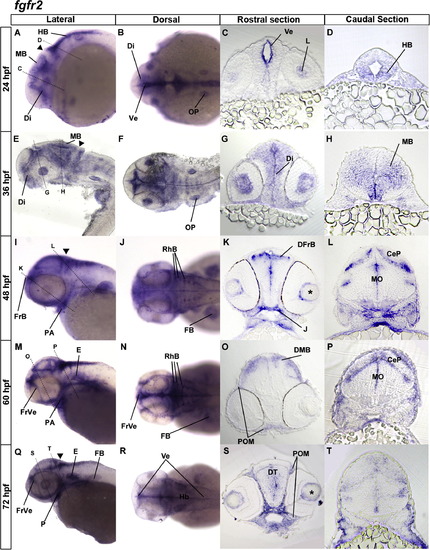

In situ hybridization of fgfr2 gene expression. In situ hybridization of fgfr2 gene expression at 24 hpf (A–D), 36 hpf (E–H), 48 hpf (I–L), 60 hpf (M–P), and 72 hpf (Q–T). Lateral views (A, E, I, M, Q) with anterior to the left, dorsal at the top, dorsal views (B, F, J, N, R) with anterior to the left, rostral transverse brain sections (C, G, K, O, S), and caudal transverse brain sections (D, H, L, P, T). Dotted lines indicate approximate orientation of imaged sections. Solid arrowheads indicate the location of the midbrain–hindbrain boundary. Labels point to expression in the cerebellar plate (CeP), diencephalon (Di), dorsal forebrain (DFrb), dorsal midbrain (DMB), dorsal thalamus (DT), fin bud (FB), forebrain (FrB), forebrain ventricular zone (FrVe), hindbrain (HB), inner ear (E), jaw (J), lens (L), medulla oblongata (MO), midbrain (MB), otic placode (OP), periocular mesenchyme (POM), pharyngeal arches (PA), pharynx (P), rhombomere boundaries (RhB), and ventricle (Ve). In panels K and S, the asterisk draws attention to expression surrounding the lens.

Expression Data

Gene:	fgfr2
Fish:	WT
Anatomical Terms:	diencephalon fin bud forebrain dorsal region forebrain ventricular zone hindbrain lens mandibular arch skeleton medulla oblongata midbrain midbrain dorsal region midbrain ventricular zone otic vesicle periocular mesenchyme pharyngeal arch pharynx rhombomere anatomical compartment boundary solid lens vesicle thalamus dorsal region ventricular system
