Fig. 3

ID
ZDB-IMAGE-140113-3
Genes
Source
Figures for Rohs et al., 2013
Figure Caption

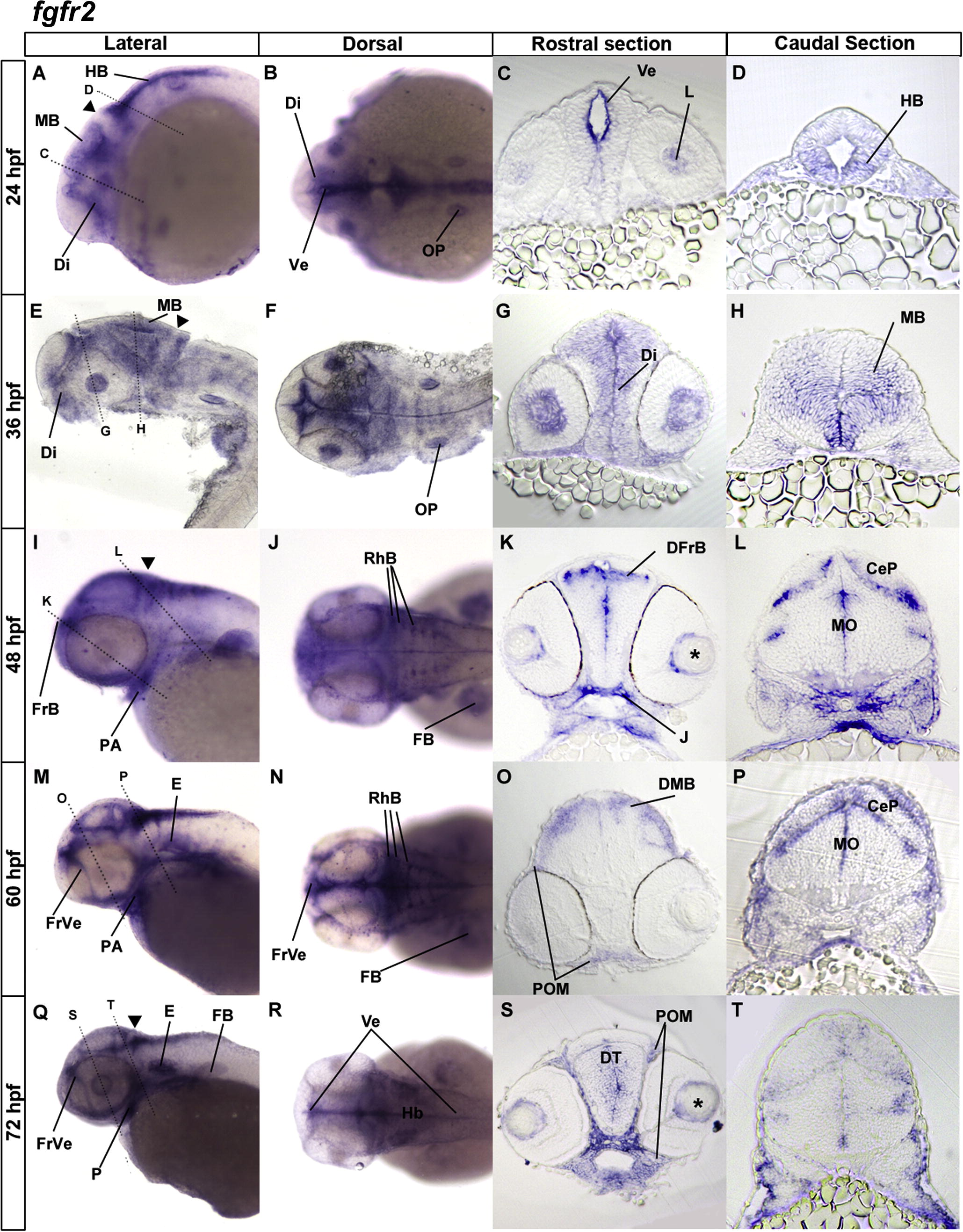

Fig. 3 In situ hybridization of fgfr2 gene expression. In situ hybridization of fgfr2 gene expression at 24 hpf (A–D), 36 hpf (E–H), 48 hpf (I–L), 60 hpf (M–P), and 72 hpf (Q–T). Lateral views (A, E, I, M, Q) with anterior to the left, dorsal at the top, dorsal views (B, F, J, N, R) with anterior to the left, rostral transverse brain sections (C, G, K, O, S), and caudal transverse brain sections (D, H, L, P, T). Dotted lines indicate approximate orientation of imaged sections. Solid arrowheads indicate the location of the midbrain–hindbrain boundary. Labels point to expression in the cerebellar plate (CeP), diencephalon (Di), dorsal forebrain (DFrb), dorsal midbrain (DMB), dorsal thalamus (DT), fin bud (FB), forebrain (FrB), forebrain ventricular zone (FrVe), hindbrain (HB), inner ear (E), jaw (J), lens (L), medulla oblongata (MO), midbrain (MB), otic placode (OP), periocular mesenchyme (POM), pharyngeal arches (PA), pharynx (P), rhombomere boundaries (RhB), and ventricle (Ve). In panels K and S, the asterisk draws attention to expression surrounding the lens.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 13(8), Rohs, P., Ebert, A.M., Zuba, A., and McFarlane, S., Neuronal Expression of Fibroblast Growth Factor Receptors in Zebrafish, 354-61, Copyright (2013) with permission from Elsevier. Full text @ Gene Expr. Patterns
