Fig. 6

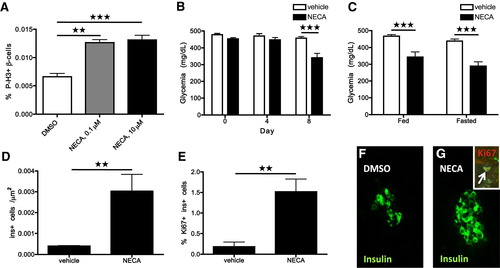

NECA Enhances Murine β Cell Proliferation and Glucose Control after STZ-Induced Diabetes

(A) Proliferation rate of β cells, displayed as percentage of P-H3-labeled β cells, in isolated mouse islets following 4 days of vehicle or NECA treatment. p < 0.01 for 0.1 μM NECA; p < 0.001 for 10 μM NECA.

(B) Blood glucose levels after STZ-induced diabetes and subsequent treatment with vehicle or NECA for 8 days. The blood glucose levels were determined in fed mice. p < 0.001; n = 21 mice for vehicle treated; n = 18 mice for NECA treated.

(C) Blood glucose levels in fed and fasted state of STZ-injected mice after 15 days of treatment with vehicle or NECA. p < 0.001; n = 14 mice for vehicle treated; n = 10 mice for NECA treated.

(D) β cell mass as determined by the number of insulin-positive cells per unit area (Ins+ cell per μm2) in STZ-injected mice after 15 days of vehicle or NECA treatment. p = 0.0058; n = 5 mice per group.

(E) Proliferation of insulin-expressing cells in STZ-injected mice following vehicle or NECA treatment. Quantification of the percent of insulin-positive cells that colabeled with Ki67. p = 0.0019; n = 5 mice per group.

(F and G) Representative images of islets in STZ-injected mice after 15 days of vehicle (F) or NECA treatment (G). A Ki67+ Ins+ cell (arrow) in a NECA-treated mouse is shown in the inset (G). Error bars represent SEM.
