FIGURE

Fig. 6

ID

ZDB-FIG-130228-37

Publication

Parente et al., 2013 - Hypoxia/Reoxygenation cardiac injury and regeneration in zebrafish adult heart

Other Figures

All Figure Page

Back to All Figure Page

Fig. 6

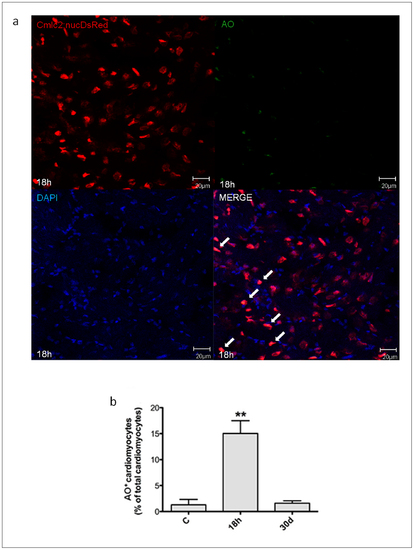

Necrotic myocyte cell death induced by H/R in vivo.

Necrotic myocyte cell death was assessed under baseline conditions, and 18 h and 30d after H/R in the Tg(cmlc2:nucDsRed) zebrafish line. At 18 h after H/R it was found a marked increase in necrotic myocardial cell number, which was back to control value at the 30d time point. (a) Representative image of a zebrafish heart ventricular section 18 h after H/R showing colocalization of DAPI, DsRED and AO stainings. Arrows indicate cardiomyocyte AO⁺ nuclei. (b) AO⁺ cardiomyocytes nuclei in control (C) animals, and 18 h and 30d after H/R (n = 3 at each time point; ** p<0.01 vs. C).

Expression Data

Gene:	DsRed2
Fish:	f2Tg
Condition:	hypoxia
Anatomical Term:	cardiac muscle cell nucleus
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	f2Tg
Condition:	hypoxia
Observed In:	cardiac muscle cell cell death
Stage:	Adult

Phenotype Detail
