Fig. 2

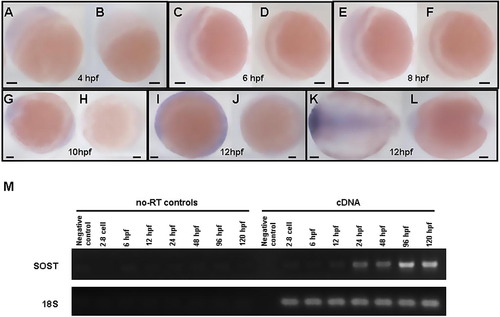

Whole mount in situ hybridization of early stage zebrafish embryos (4–12 hpf) using anti-sense or sense Danio rerio sost probe. Panel A. 4 hpf, anti-sense probe. Panel B. 4 hpf, sense probe. Panel C. 6 hpf, anti-sense probe. Panel D. 6 hpf, sense probe. Panel E. 8 hpf, anti-sense probe. Panel F. 8 hpf, sense probe. Panel G. 10 hpf, anti-sense probe. Panel H. 10 hpf, sense probe. Panel I. 12 hpf, anti-sense probe, lateral view Panel J. 12 hpf, sense probe, lateral view. Panel K. 12 hpf, anti-sense probe, dorsal view. Panel L. 12 hpf, sense probe, dorsal view. Panel M. Reverse transcriptase polymerase chain reaction assessment of sost expression and housekeeping gene, 18S. Scale bar = 100 μm.

Expression Data

Gene:	sost
Fish:	WT
Anatomical Term:	whole organism
Stage Range:	2-cell to Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
