FIGURE

Fig. 9

ID
ZDB-FIG-120316-109
Publication
Kirchmaier et al., 2012 - The Popeye domain containing 2 (popdc2) gene in zebrafish is required for heart and skeletal muscle development
Other Figures
All Figure Page
Back to All Figure Page
Fig. 9

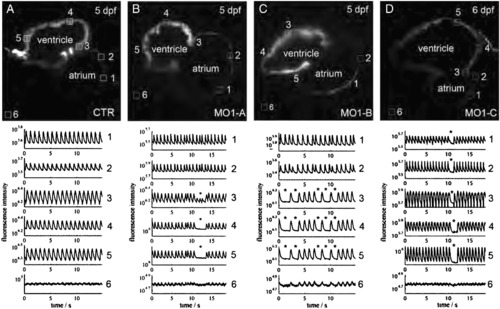

The hearts of popdc2 morphants display a variety of cardiac conduction defects. SPIM videos of the heart of zebrafish embryos injected with (A) control (CTR) and (B–D) MO1-popdc2 morpholino in the Tg(cmlc2:gCaMP)s878 background. The individual movies (see SI Movie 5, Movie 6, Movie 7 and Movie 8) were processed to determine the fluorescence intensity of selected regions of the heart over time. Each selected region has a corresponding number plotted below. (A) In a control (CTR), fluorescence intensity varies with time in atrial and ventricular regions as the depolarization wave propagates through the heart. (B) Heart displaying a single incidence (asterisks) of a 4:1 AV block. (C) Heart displaying alternating phases of normal conduction and 2:1 AV block (asterisks). Both hearts depicted in (B) and (C) also display irregular atrial conduction waves. (D) Example of a 6 dpf heart with sinoatrial block (asterisk).The hearts of popdc2 morphants display a variety of cardiac conduction defects. SPIM videos of the heart of zebrafish embryos injected with (A) control (CTR) and (B–D) MO1-popdc2 morpholino in the Tg(cmlc2:gCaMP)s878 background. The individual movies (see SI Movies 5–8) were processed to determine the fluorescence intensity of selected regions of the heart over time. Each selected region has a corresponding number plotted below. (A) In a control (CTR), fluorescence intensity varies with time in atrial and ventricular regions as the depolarization wave propagates through the heart. (B) Heart displaying a single incidence (asterisks) of a 4:1 AV block. (C) Heart displaying alternating phases of normal conduction and 2:1 AV block (asterisks). Both hearts depicted in (B) and (C) also display irregular atrial conduction waves. (D) Example of a 6 dpf heart with sinoatrial block (asterisk).

Expression Data
Gene:
Fish:
Knockdown Reagent:
Anatomical Terms:
Stage: Day 5

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagent:
Observed In:
Stage: Day 5

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 363(2), Kirchmaier, B.C., Poon, K.L., Schwerte, T., Huisken, J., Winkler, C., Jungblut, B., Stainier, D.Y., and Brand, T., The Popeye domain containing 2 (popdc2) gene in zebrafish is required for heart and skeletal muscle development, 438-450, Copyright (2012) with permission from Elsevier. Full text @ Dev. Biol.
