Fig. 4

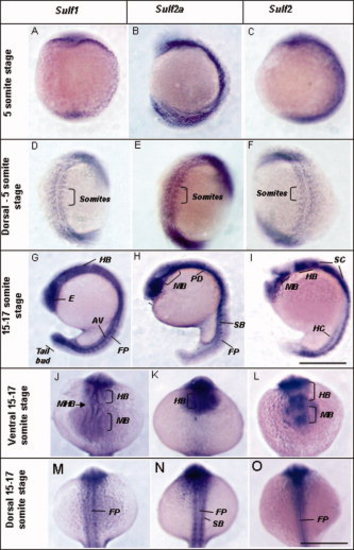

Expression of heparan sulfate (HS) sulf genes during early zebrafish development. Expression of sulf1 at 5-somite stage, lateral view (A) and dorsal view (D) and 15–17-somite stage, lateral (G), ventral (J), and dorsal views (M). Expression of sulf2a at 5-somite stage, lateral view (B) and dorsal view (E), and 15–17-somite stage, lateral (H), ventral (K), and dorsal view (N), Expression of sulf2 at 5-somite stage, lateral view (C) and dorsal view (F), and 15–17-somite stage, lateral (I), ventral (L), and dorsal view (O). AV, axial vessels; E, eye; FP, floorplate; HB, hindbrain; HC, hypochord; MB, midbrain; PD, pronephric ducts; SB, somite boundaries. SC, spinal cord. Scale bar = 200 μm.
