Fig. 2

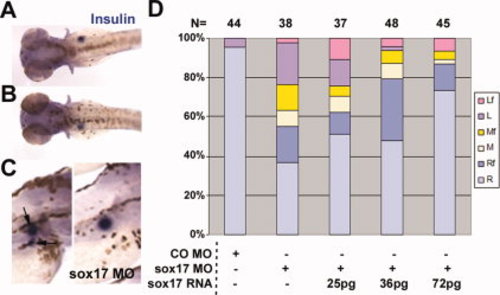

Injection of sox17 MO leads to abnormal pancreas placement, which is rescued by sox17 RNA co-injection. Embryos injected at the one-cell stage with 10 ng CO MO, or 10 ng sox17 MO alone or combined with sox17 RNA as indicated, were in situ hybridized with insulin at 3dpf. A-C: Sox17 MO injected embryos showed normal expression on the right side (A), and abnormal opposite expression on the left (B); dorsal views, anterior to left. Some embryos showed fragmented ins-positive domains (C left, arrows), with an example of an intact domain in the right panel (lateral views, anterior to right). D: Localization of ins expression after injection of MOs with or without RNA, as indicated. R, right; M, middle; L, left; f in Rf, Mf, or Lf refers to fragmented ins-positive domains. Number of embryos is shown at the top.

Expression Data

Gene:	ins
Fish:	WT + MO2-sox17
Knockdown Reagent:	MO2-sox17
Anatomical Term:	endocrine pancreas
Stage:	Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO2-sox17
Knockdown Reagent:	MO2-sox17
Observed In:	determination of pancreatic left/right asymmetry endocrine pancreas pancreas
Stage:	Protruding-mouth

Phenotype Detail
